Power Dividers and Combiners


This series uses a cascaded Wilkinson design approach realized with microstrip circuit construction. Units are designed to survive MIL-E-5400 environments.Design package accommodates SMA, N, BNC and TNC connectors. Design modification may be necessary for non-SMA connectors.


  • Octave Bandwidth
  • High Isolation
  • Excellent Phase & Amplitude Balance
  • Standard SMA Connectors (N, BNC, TNC optional)

Finish: Chemical Conversion Coating per MIL-DTL-5541 Class 3 (optional paint available upon request)
Marking: All units supplied with P/N and date code on polyester label (special marking available upon request)
Electrical Test: All units tested on a Go/No-go basis (plotted data available upon request). Specifications indicated are subject to change. Unless otherwise specified, electrical properties correspond to use with standard SMA connectors.

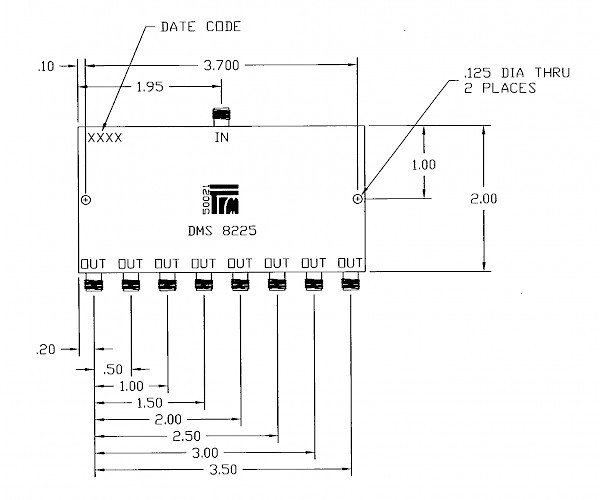

Dimensions: All dimensions are expressed in inches, (1 inch = 25.4mm). All dimensions indicated are subject to change. Unless otherwise specified, tolerances for decimals are ±0.02 for .XX and ±0.005 for .XXX. Tolerances for angles are ±0°30'.
Temperature: Units designed to operate -55° to +85° C.

General Parameters:
Type: 8-WAY
Freq Range: 1.5-3.0 GHz
Low Frequency [MHz]: 1500
High Frequency [MHz]: 3000
Insertion Loss [dB]: 0.8
Isolation [dB]: 20
VSWR [:1]: 1.40:1
VSWR2: 1.40:1
Amplitude Balance [dB]: 0.3
Phase Balance [deg]: 3
Input Power [W]: 30

3D View
