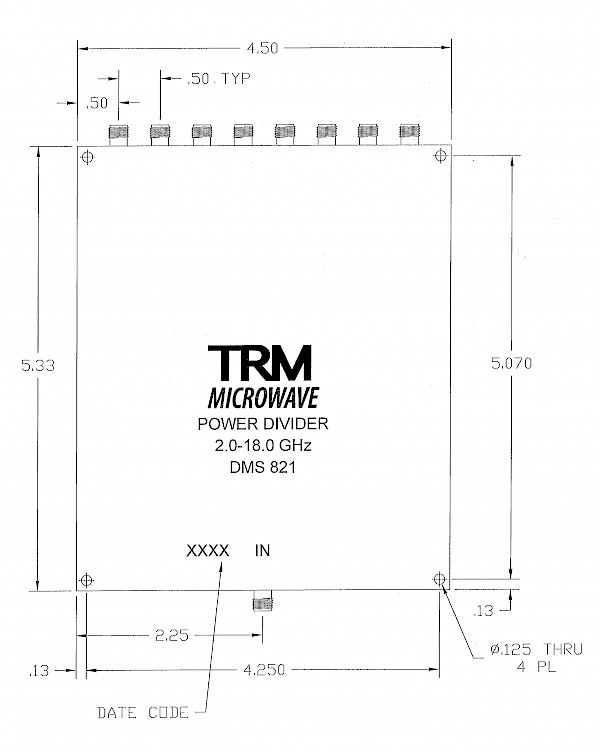

Stripline circuit construction provides optimal amplitude balance and moderate power handling up to 18GHz. Design package accommodates SMA, N, BNC and TNC connectors. Design modification may be necessary for non-SMA connectors.
Finish: Chemical Conversion Coating per MIL-DTL-5541 Class 3 (optional paint available upon request)Marking: All units supplied with P/N and date code on polyester label (special marking available upon request)Electrical Test: All units tested on a Go/No-go basis (plotted data available upon request). Specifications indicated are subject to change. Unless otherwise specified, electrical properties correspond to use with standard SMA connectors.Dimensions: All dimensions are expressed in inches, (1 inch = 25.4mm). All dimensions indicated are subject to change. Unless otherwise specified, tolerances for decimals are ±0.02 for .XX and ±0.005 for .XXX. Tolerances for angles are ±0°30'.Temperature: Units designed to operate -55° to +85° C.
